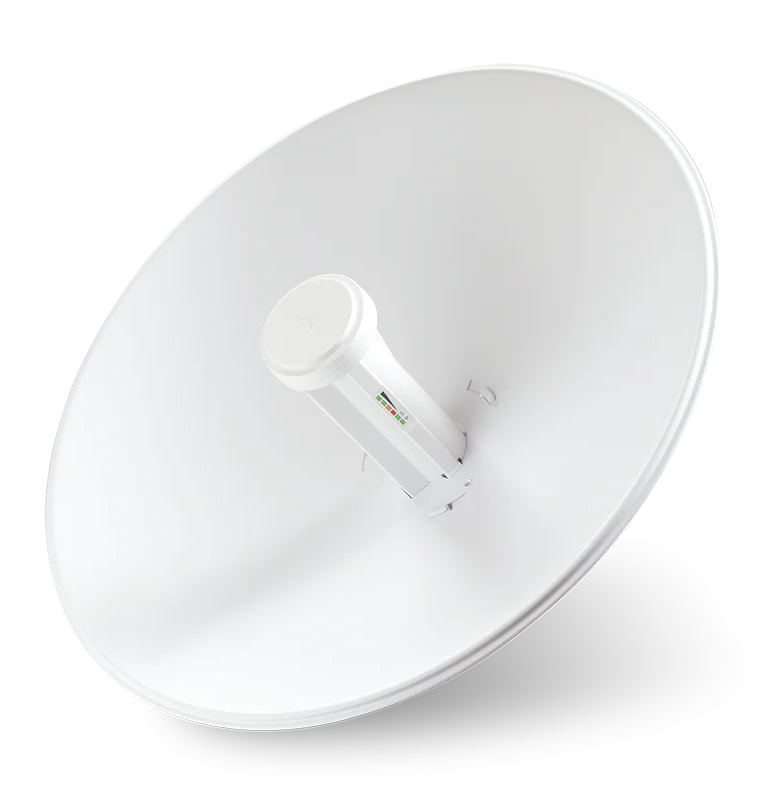

UBIQUITI UISP airMAX PowerBeam M5 400 mm Bridge, 5GHz, 25dBi PBE-M5-400

UBIQUITI UISP airMAX PowerBeam M5 400 mm Bridge, 5GHz, 25dBi

Τεχνικά Χαρακτηριστικά:
Enclosure material: UV-stabilized plastic
Mounting: Pole mount kit (Included)
Wind survivability: 200 km/h (125 mph)
Wind loading: 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Networking interface: (1) 10/100/1000 MbE port
Power method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply: 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption: 8W
Max. TX power: 26 dBm
Gain: 25 dBi
ESD/EMP protection: Air/contact: ± 24 kV
LEDs: (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs: Software-adjustable to correspond to custom RSSI levels
Salt fog test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5
Vibration test: IEC 68-2-6
Temperature shock test: IEC 68-2-14
UV test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-driven rain test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5
Operating temperature: -40 to 70° C (-40 to 158° F)
Operating humidity: 5 to 95% noncondensing
Gain: 22 dBi
Channel sizes: 5/8/10/20/30/40 MHz
Polarization: Dual linear
Operating Frequency (MHz): 5170 - 5875 MHz
Dimensions: 420 x 420 x 275 mm
Weight: 1.75kg

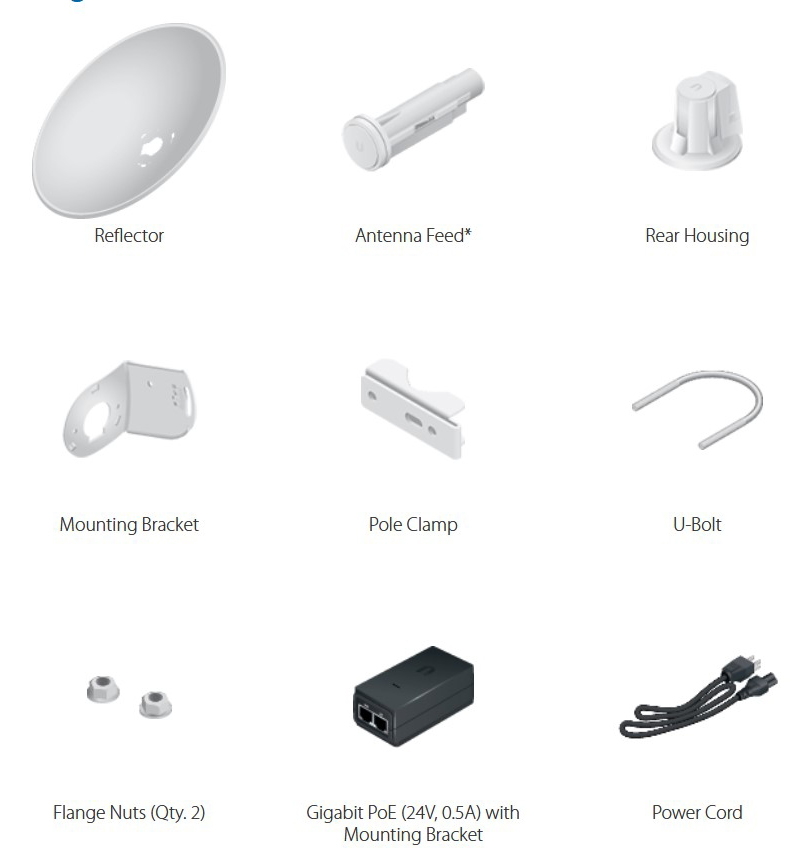

Περιεχόμενα συσκευασίας
Reflector
Antenna Feed
Rear Housing
Mounting Bracket
Pole Clamp
U-Bolt
2x Flange Nuts
Gigabit PoE (24V, 0.5A) with Mounting Bracket
Power Cord
